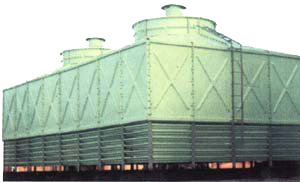

Square Type Cooling Tower :


VARUN square type cooling towers work on the principle of counter flow. This means that the water flows down while the air is pulled upwards by a fan. As the water flows further through the system, the air encounters is fresher, in other words cooler and less saturated with moisture.

Direct access to internal parts providing easy maintenance and repairs, which is negligible. All materials in making VARUN cooling tower are completely resistance to corrosion and chemicals. It is light in weight and thus permits roof installation without any special reinforcement. A direct driven axial flow fan ensures the system free from problem faced with belt and gear drives.




Design Specifications:

The non rusting Fiberglass Reinforced Polyester (FRP) casing & basin, circular in shape, eliminates special installation requirements. Prevailing wind directions will not affect tower performance.

Casing:

The tower casing is made of FRP. This material is light in weight, durable and non-corrosive. The resilient nature of FRP and adequate structural strength will provide an additional margin of safety during high wind velocities and vibrations.

Fills:

Our standard fill is constructed of a honeycombed PVC film. This honeycomb construction ensures even water distribution and high efficiency water to air heat transfer. The fill shall with stand a maximum inlet water temperature of 55 C.

Drift Eliminator:

It is of PVC fixed type and ensure water carry over losses shall not exceed 0.05% of circulating water flow.

Water Distribution System:

It is static water distribution system made of GI/PVC pipe with multiple branch arms and HDPE spray nozzles for low pressure drop and uniform water distribution throughout the fill area. We can also supply Rotary Sprinkler as per client’s requirement.

Basin:

Basin is made of FRP and its completely leak proof. which avoids spillage and seepage of water. It is deep sump to ensure maximum water level at all times.

Fan:

The axial flow direct driven fans have been specifically designed for cooling tower use. It is made of cast aluminum blades and hub. They provide a large volume of stable air at low pressure while maintaining desired low noise levels.

Electric Motor:

Specially designed totally enclosed vertical flange mounted motors with extended threaded shaft and sealed top is supplied with cooling tower. The motor is having weather proof IP-55 degree of protection, suitable for hot and humid atmosphere.

Supporting Structure:

All supporting structure is of hot Dip Galvanized Steel.
